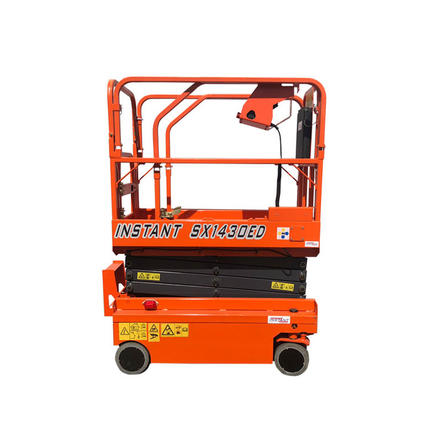

Instant SX1430ED full-electric small scissor lift platform is a kind of aerial work equipment with high lifting stability and wide applicability. It is mainly suitable for indoor work. Due to its small size, it has better flexibility and maneuverability, and has a wide range of application and great fluidity.

Specification Instant SX1430ED
Platform capacity 240 Kg
Extendable platform capacity 105 Kg
Max. Workers No. 2
Max. working height 5.9 m
Max. platform height 3.9 m
Length 1320 mm
Width 760 mm
Height (guardrail unfolded) 2040 mm
Height (guardrail folded) 1730 mm
Size of platform 1150*700 mm
Extendable platform 550 mm

Min. Ground clearance

(scissor folded)

50 mm
Min. Turning radius 0 mm
Lifting motor 24/0.8 V/Kw
Travel speed (folded)  4 Km/h
Travel speed (raised)  0.5 Km/h
Battery 2*12/105 V/Ah
Charger 24/12 V/A
Grade ability 25 %
Max. working inclination 1.5 - 3 °
Overall weight 860 Kg
